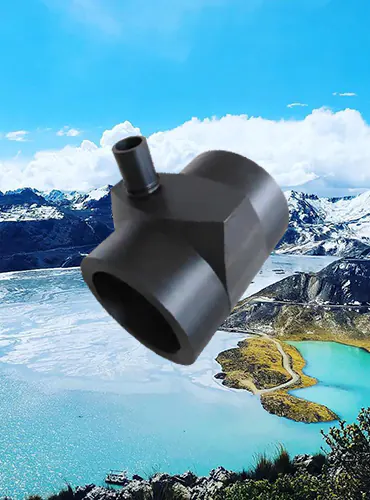

HDPE Eccentric & Invert Tees

HDPE Eccentric Tees and Invert Tees are engineered for drainage, sewerage, wastewater, and industrial pipeline systems where maintaining a continuous pipe invert is essential.

By aligning the branch connection with the pipe’s internal bottom level, these specialist HDPE tee fittings promote smoother flow, reduce turbulence, and help prevent solids and sediment from collecting at the junction.
Machined from premium HDPE solid rod or hollow bar, our eccentric and invert tees provide a robust alternative to conventional injection-moulded fittings.

They offer excellent resistance to corrosion, abrasion, chemicals, and environmental stress cracking, making them suitable for demanding underground and above-ground installations.
Available in custom configurations from OD110 mm to OD1600 mm, with SDR7.4 to SDR17 options, every HDPE eccentric tee can be tailored to the project’s pipe diameter, pressure class, branch angle, and connection requirements. Smooth internal surfaces support efficient conveying performance and reduce maintenance demands in gravity and pressurised drainage networks.

Whether used in municipal sewer systems, wastewater treatment plants, industrial effluent lines, mining operations, or drainage infrastructure, our HDPE invert tees deliver durable, leak-resistant, and flow-optimised connections for long service life.
Request a custom HDPE eccentric or invert tee solution designed for your pipeline project.

Description

Size d1 d2 h L1 L SDR7.4 SDR9 SDR11 SDR17 SDR21
mm mm mm mm mm
110*63 110 63 100 100 323 √ √ √ √ √
110*75 110 75 100 100 335 √ √ √ √ √
110*90 110 90 100 100 350 √ √ √ √ √
125*75 125 75 100 100 335 √ √ √ √ √
125*90 125 90 100 100 350 √ √ √ √ √
125*110 125 110 100 100 370 √ √ √ √ √
140*75 140 75 100 100 335 √ √ √ √ √
140*90 140 90 100 100 350 √ √ √ √ √
140*110 140 110 100 100 370 √ √ √ √ √
160*75 160 75 100 100 335 √ √ √ √ √
160*90 160 90 100 100 350 √ √ √ √ √
160*110 160 110 100 100 370 √ √ √ √ √
180*75 180 75 100 100 335 √ √ √ √ √
180*90 180 90 100 100 350 √ √ √ √ √
180*110 180 110 100 100 370 √ √ √ √ √
180*140 180 125 100 100 385 √ √ √ √ √
200*75 200 75 100 100 335 √ √ √ √ √
200*90 200 90 100 100 350 √ √ √ √ √
200*110 200 110 100 100 370 √ √ √ √ √
200*160 200 110 100 100 370 √ √ √ √ √
225*75 225 75 100 100 335 √ √ √ √ √
225*90 225 90 100 100 350 √ √ √ √ √
225*110 225 110 100 100 370 √ √ √ √ √
225*160 225 160 100 100 420 √ √ √ √ √
250*75 250 75 100 100 335 √ √ √ √ √
250*90 250 90 100 100 350 √ √ √ √ √
250*110 250 110 100 100 370 √ √ √ √ √
250*160 250 160 100 100 420 √ √ √ √ √
280*75 280 75 100 100 335 √ √ √ √ √
280*90 280 90 100 100 350 √ √ √ √ √
280*110 280 110 100 100 370 √ √ √ √ √
280*140 280 140 100 100 400 √ √ √ √ √
280*160 280 160 100 100 420 √ √ √ √ √
315*90 315 90 100 120 390 √ √ √ √ √
315*110 315 110 100 120 410 √ √ √ √ √
315*125 315 125 100 120 425 √ √ √ √ √
315*140 315 140 100 120 440 √ √ √ √ √
315*160 315 160 100 120 460 √ √ √ √ √
315*180 315 180 120 120 480 √ √ √ √ √
315*200 315 200 120 120 500 √ √ √ √ √
355*90 355 90 100 120 390 √ √ √ √ √
355*110 355 110 100 120 410 √ √ √ √ √
355*125 355 125 100 120 425 √ √ √ √ √
355*140 355 140 100 120 440 √ √ √ √ √
355*160 355 160 100 120 460 √ √ √ √ √
355*180 355 180 120 120 480 √ √ √ √ √
355*200 355 200 120 120 500 √ √ √ √ √
400*90 400 90 100 120 390 √ √ √ √ √
400*110 400 110 100 120 410 √ √ √ √ √
400*125 400 125 100 120 425 √ √ √ √ √
400*140 400 140 100 120 440 √ √ √ √ √
400*160 400 160 100 120 460 √ √ √ √ √
400*180 400 180 120 120 480 √ √ √ √ √
400*200 400 200 120 120 500 √ √ √ √ √
450*90 450 90 100 160 470 √ √ √ √ √
450*110 450 110 100 160 490 √ √ √ √ √
450*125 450 125 100 160 505 √ √ √ √ √
450*140 450 140 100 160 520 √ √ √ √ √
450*160 450 160 100 160 540 √ √ √ √ √
450*180 450 180 120 160 560 √ √ √ √ √
450*200 450 200 120 160 580 √ √ √ √ √
450*225 450 225 160 160 605 √ √ √ √ √
500*110 500 110 100 160 490 √ √ √ √ √
500*125 500 125 100 160 505 √ √ √ √ √
500*140 500 140 100 160 520 √ √ √ √ √
500*160 500 160 100 160 540 √ √ √ √ √
500*180 500 180 120 160 560 √ √ √ √ √
500*200 500 200 120 160 580 √ √ √ √ √
500*225 500 225 160 160 605 √ √ √ √ √
500*250 500 250 160 160 630 √ √ √ √ √
560*110 560 110 100 160 490 √ √ √ √ √
560*125 560 125 100 160 505 √ √ √ √ √
560*140 560 140 100 160 520 √ √ √ √ √
560*160 560 160 100 160 540 √ √ √ √ √
560*180 560 180 120 160 560 √ √ √ √ √
560*200 560 200 120 160 580 √ √ √ √ √
560*225 560 200 160 160 605 √ √ √ √ √
560*250 560 250 160 160 630 √ √ √ √ √
560*280 560 280 160 160 660 √ √ √ √ √
630*110 630 110 100 160 490 √ √ √ √ √
630*125 630 125 100 160 505 √ √ √ √ √
630*140 630 140 100 160 520 √ √ √ √ √
630*160 630 160 100 160 540 √ √ √ √ √
630*180 630 180 120 160 560 √ √ √ √ √
630*200 630 200 120 160 580 √ √ √ √ √
630*225 630 225 160 160 605 √ √ √ √ √
630*250 630 250 160 160 630 √ √ √ √ √
630*280 630 280 160 160 660 √ √ √ √ √
630*315 630 315 160 160 695 √ √ √ √ √
710*110 710 110 100 200 570 √ √ √ √ √
710*125 710 125 100 200 585 √ √ √ √ √
710*140 710 140 100 200 600 √ √ √ √ √
710*160 710 160 100 200 620 √ √ √ √ √
710*180 710 180 120 200 640 √ √ √ √ √
710*200 710 200 120 200 660 √ √ √ √ √
710*225 710 225 160 200 685 √ √ √ √ √
710*250 710 250 160 200 710 √ √ √ √ √
710*280 710 280 160 200 740 √ √ √ √ √
710*315 710 315 200 200 775 √ √ √ √ √
710*355 710 355 200 200 815 √ √ √ √ √
800*110 800 110 100 200 570 √ √ √ √
800*125 800 125 100 200 585 √ √ √ √
800*140 800 140 100 200 600 √ √ √ √
800*160 800 160 100 200 620 √ √ √ √
800*180 800 180 120 200 640 √ √ √ √
800*200 800 200 120 200 660 √ √ √ √
800*225 800 225 160 200 685 √ √ √ √
800*250 800 250 160 200 710 √ √ √ √
800*280 800 280 160 200 740 √ √ √ √
800*315 800 315 200 200 775 √ √ √ √
800*355 800 355 200 200 815 √ √ √ √
800*400 800 400 200 200 860 √ √ √ √
900*110 900 110 100 300 770 √ √ √
900*125 900 125 100 300 785 √ √ √
900*140 900 140 100 300 800 √ √ √
900*160 900 160 100 300 820 √ √ √
900*180 900 180 120 300 840 √ √ √
900*200 900 200 120 300 860 √ √ √
900*225 900 225 160 300 885 √ √ √
900*250 900 250 160 300 910 √ √ √
900*280 900 280 160 300 940 √ √ √
900*315 900 315 200 300 975 √ √ √
900*355 900 355 200 300 1015 √ √ √
900*400 900 400 200 300 1060 √ √ √
900*450 900 450 200 300 1110 √ √ √
1000*110 1000 110 100 300 770 √ √ √
1000*125 1000 125 100 300 785 √ √ √
1000*140 1000 140 100 300 800 √ √ √
1000*160 1000 160 100 300 820 √ √ √
1000*180 1000 180 120 300 840 √ √ √
1000*200 1000 200 120 300 860 √ √ √
1000*225 1000 225 160 300 885 √ √ √
1000*250 1000 250 160 300 910 √ √ √
1000*280 1000 280 160 300 940 √ √ √
1000*315 1000 315 200 300 975 √ √ √
1000*355 1000 355 200 300 1015 √ √ √
1000*400 1000 400 200 300 1060 √ √ √
1000*450 1000 450 200 300 1110 √ √ √
1000*500 1000 500 200 300 1160 √ √ √
1200*110 1200 110 100 300 770 √ √ √
1200*125 1200 125 100 300 785 √ √ √
1200*140 1200 140 100 300 800 √ √ √
1200*160 1200 160 100 300 820 √ √ √
1200*180 1200 180 120 300 840 √ √ √
1200*200 1200 200 120 300 860 √ √ √
1200*225 1200 225 160 300 885 √ √ √
1200*250 1200 250 160 300 910 √ √ √
1200*280 1200 280 160 300 940 √ √ √
1200*315 1200 315 200 300 975 √ √ √
1200*355 1200 355 200 300 1015 √ √ √
1200*400 1200 400 200 300 1060 √ √ √
1200*450 1200 450 200 300 1110 √ √ √
1200*500 1200 500 200 300 1160 √ √ √
1400*180 1400 180 160 300 840 √ √ √
1400*200 1400 200 160 300 860 √ √ √
1400*225 1400 225 160 300 885 √ √ √
1400*250 1400 250 160 300 910 √ √ √
1400*280 1400 280 200 300 940 √ √ √
1400*315 1400 315 200 300 975 √ √ √
1400*355 1400 355 200 300 1015 √ √ √
1400*400 1400 400 200 300 1060 √ √ √
1400*450 1400 450 200 300 1110 √ √ √
1400*500 1400 500 200 300 1160 √ √ √
1400*560 1400 560 200 300 1220 √ √ √
1400*630 1400 630 200 300 1290 √ √ √
1400*710 1400 710 300 300 1370 √ √ √
1600*110 1600 110 120 300 770 √ √ √
1600*125 1600 125 120 300 785 √ √ √
1600*140 1600 140 120 300 800 √ √ √
1600*160 1600 160 120 300 820 √ √ √
1600*180 1600 180 160 300 840 √ √ √
1600*200 1600 200 160 300 860 √ √ √
1600*225 1600 225 160 300 885 √ √ √
1600*250 1600 250 160 300 910 √ √ √
1600*280 1600 280 200 300 940 √ √ √
1600*315 1600 315 200 300 975 √ √ √
1600*355 1600 355 200 300 1015 √ √ √
1600*400 1600 400 200 300 1060 √ √ √
1600*450 1600 450 200 300 1110 √ √ √
1600*500 1600 500 200 300 1160 √ √ √
1600*560 1600 560 200 300 1220 √ √ √
1600*630 1600 630 200 300 1290 √ √ √
1600*710 1600 710 300 300 1370 √ √ √
1600*800 1600 800 300 300 1460 √ √ √
1800*110 1800 110 120 300 770 √ √ √
1800*125 1800 125 120 300 785 √ √ √
1800*140 1800 140 120 300 800 √ √ √
1800*160 1800 160 120 300 820 √ √ √
1800*180 1800 180 160 300 840 √ √ √
1800*200 1800 200 160 300 860 √ √ √
1800*225 1800 225 160 300 885 √ √ √
1800*250 1800 250 160 300 910 √ √ √
1800*280 1800 280 200 300 940 √ √ √
1800*315 1800 315 200 300 975 √ √ √
1800*355 1800 355 200 300 1015 √ √ √
1800*400 1800 400 200 300 1060 √ √ √
1800*450 1800 450 200 300 1110 √ √ √
1800*500 1800 500 200 300 1160 √ √ √
1800*560 1800 560 200 300 1220 √ √ √
1800*630 1800 630 200 300 1290 √ √ √
1800*710 1800 710 300 300 1370 √ √ √
1800*800 1800 800 300 300 1460 √ √ √
1800*900 1800 900 300 300 1560 √ √ √
2000*110 2000 110 120 300 770 √ √ √
2000*125 2000 125 120 300 785 √ √ √
2000*140 2000 140 120 300 800 √ √ √
2000*160 2000 160 120 300 820 √ √ √
2000*180 2000 180 160 300 840 √ √ √
2000*200 2000 200 160 300 860 √ √ √
2000*225 2000 225 160 300 885 √ √ √
2000*250 2000 250 160 300 910 √ √ √
2000*280 2000 280 200 300 940 √ √ √
2000*315 2000 315 200 300 975 √ √ √
2000*355 2000 355 200 300 1015 √ √ √
2000*400 2000 400 200 300 1060 √ √ √
2000*450 2000 450 200 300 1110 √ √ √
2000*500 2000 500 200 300 1160 √ √ √
2000*560 2000 560 200 300 1220 √ √ √
2000*630 2000 630 200 300 1290 √ √ √
2000*710 2000 710 300 300 1370 √ √ √
2000*800 2000 800 300 300 1460 √ √ √
2000*900 2000 900 300 300 1560 √ √ √
2000*1000 2000 1000 300 300 1660 √ √ √
