HDPE half Face Flange Adapter

HDPE half Face Flange Adapter

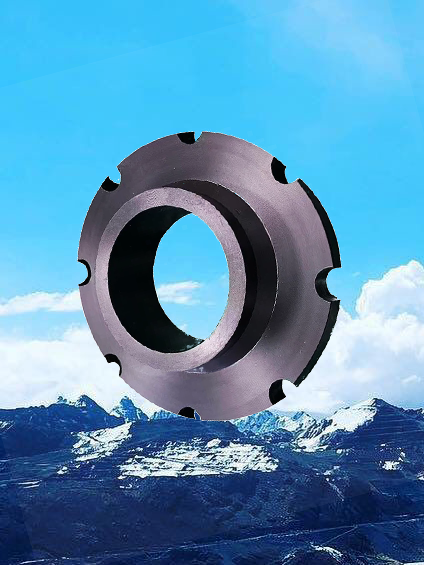

Precision-Machined HDPE Half Face Flange Adapter

Our HDPE Full Face Flange Adapter is expertly machined from HDPE solid rod or hollow bar, ensuring superior dimensional accuracy, a perfect seal, and maximum durability. Unlike injection-molded fittings, this machining process creates a robust and reliable connection for joining HDPE pipe to ISO standard full face flanges.

Ideal for water, chemical, and industrial piping systems requiring a secure, leak-proof interface between pipes and equipment.

Request a Quote for Precision-Machined HDPE Adapters!

Description

Description

D（mm）	T (mm)	C mm	A mm	le mm	L mm	(PCD) K	BOLT HOLE NO. X DIA.	BOLT SIZE
63	SDR*1.2	75	165	50	75	125	4X18	M16
75	SDR*1.2	89	185	50	75	145	8X18	M16
90	SDR*1.2	105	200	50	80	160	8X18	M16
110	SDR*1.2	125	220	100	140	180	8X18	M16
125	SDR*1.2	132	220	100	140	180	8X18	M16
140	SDR*1.2	155	250	100	145	210	8X18	M16
160	SDR*1.2	175	285	100	145	240	8X22	M20
180	SDR*1.2	180	285	100	150	240	8X22	M20
200	SDR*1.2	232	370	100	155	295	12X22	M20
225	SDR*1.2	235	405	120	175	295	12X26	M24
250	SDR*1.2	285	430	120	180	355	12X26	M24
280	SDR*1.2	291	405	120	185	355	12X26	M24
315	SDR*1.2	335	490	120	190	410	16X26	M24
355	SDR*1.2	373	550	140	220	470	16X30	M27
400	SDR*1.2	427	610	140	225	525	20X30	M27
450	SDR*1.2	514	675	140	235	585	20X33	M30
500	SDR*1.2	530	735	140	230	650	24X33	M30
560	SDR*1.2	615	840	140	235	770	24X36	M33
630	SDR*1.2	642	840	160	265	770	24X36	M33
710	SDR*1.2	737	910	160	275	840	24X36	M33
800	SDR*1.2	840	1025	160	290	950	28X36	M33
900	SDR*1.2	944	1125	200	320	1050	32X39	M36
1000	SDR*1.2	1047	1255	200	330	1175	36X39	M36
1200	SDR*1.2	1245	1530	200	350	1410	40X42	M39
